A guide to heart rate monitoring on Garmin wearables

The lowdown on tracking your heart with a Garmin watch or fitness tracker

Heart rate monitoring has been a staple feature on Garmin's watches for some time now, but it's only over the last few years that it's taken the leap from getting that data from a paired heart rate chest strap to moving the tech directly into the wearables themselves.

Since Garmin launched the Forerunner 225 running watch back in 2015, its first device to include a built-in optical heart rate monitor, there's been a steady stream of sports watches and fitness trackers that now let you track heart rate activity from the wrist.

Read this: Best heart rate monitors to buy

But what kind of data can you see – and how can you make the most of those insights? We've broken down exactly how Garmin's heart rate technology works, the kind of data it provides and where you can find that information during and after your workout.

How Garmin's heart rate tech works

A guide to Garmin and heart rate monitoring

So before we get into the data we need to talk about how that data is generated in the first place. Like many of the heart rate monitors found on watches like the Apple Watch or on Fitbit's wearables, Garmin takes a very similar approach across its devices.

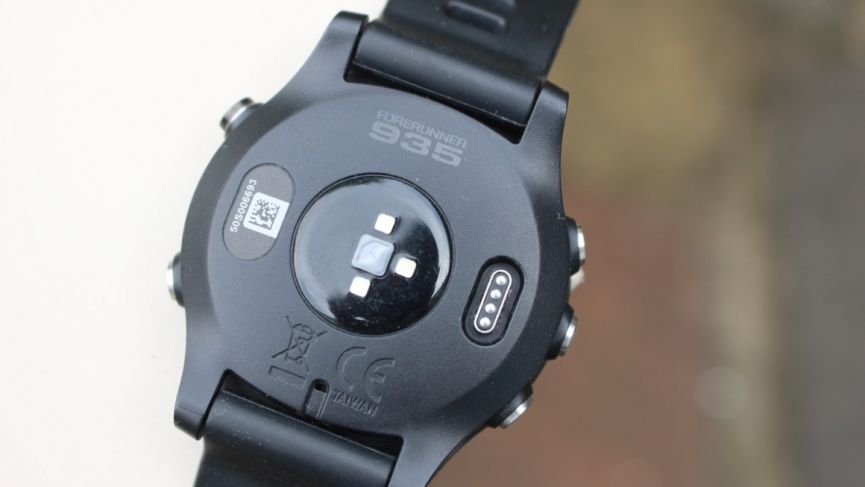

It uses its own proprietary optical-based Elevate heart rate sensor technology. These sensors can be found on the back of Garmin's wearables – that way when they're strapped on, they're well positioned on the top of the skin to take a reading.

Unlike heart rate monitor chest straps, which measure the heart's electrical activity to produce HR data, optical heart rate monitors uses a series of lights that flash against the skin, illuminating capillaries in the body to detect changes in blood volume. The sensor is then able to measure the rate at which blood is being pumped, giving you that heart rate data in real time.

Garmin wearables with built-in heart rate

A guide to Garmin and heart rate monitoring

As we've already mentioned, there's a whole host of wearables that Garmin has produced that offer the ability to monitor heart rate directly from the wrist. Most rely on the fitness benefits of capturing this information, but there's also a new wave that's using the data for insights into your general wellbeing too. Here's the list of sports watches and fitness trackers currently available to buy from Garmin that offer built-in heart rate monitoring.

Sports watches

Vivoactive 3

Forerunner 645 Music/645, Forerunner 935, Forerunner 735XT, Forerunner 30, Forerunner 35, Forerunner 235

Fenix 5 Series, Fenix Chronos

Vivomove HR

Approach X40

Fitness trackers

Vivosport, Vivosmart 3

Let's get into that Garmin heart rate data

So we've established how Garmin's heart rate sensor tech works and outlined the wearables you can find it packed into. Now it's time to turn our attention to the heart rate driven data you can dive into.

This will invariably depend on the device that you go for. So while there might be some similarities in terms of the data you can see on a Vivosmart 3 fitness tracker and the Fenix 5, you will be able to garner richer information from Garmin's top end sports watches.

During a workout

A guide to Garmin and heart rate monitoring

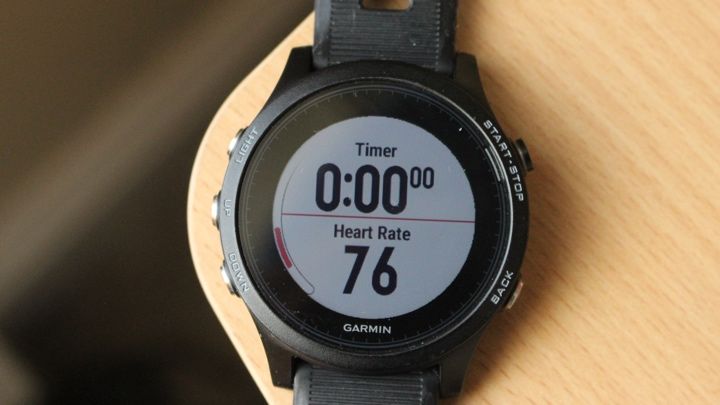

But let's start with the one piece of data that everyone comes to expect, and that's real-time heart rate data when you're working out. Whether you are going for a run, cycle or just having a general gym session, most heart rate sensor-packing wearables from Garmin will let you see this information displayed in BPMs (beats per minute), an indication of your workout intensity. Its aim is to give you an idea of how hard you've been working in your session in real time. The higher the number, the harder your heart is working.

A guide to Garmin and heart rate monitoring

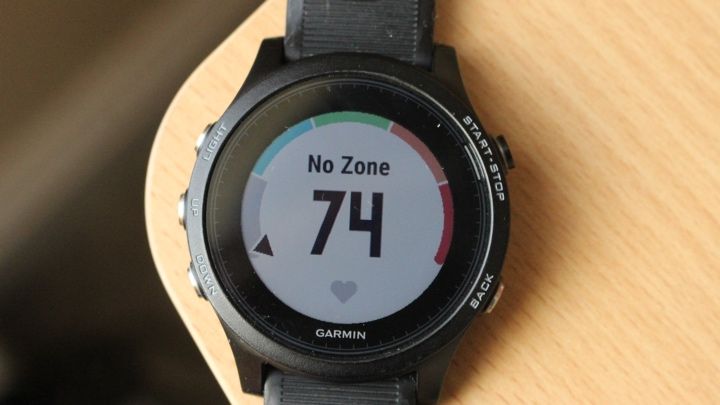

To view this information once you've started to track a workout, you can scroll through the data screens on your watch and you'll find a gauge like the one you can see above. This displays your current heart rate zone – the zones all have different benefits depending on which one you spend the most time in. You can find out more about how it all works in our guide to training with heart rate zones.

If you prefer to see that real time heart rate data from one screen alongside another piece of real-time data (like distance or pace, for instance), you can customise data screens by heading into the settings of your device to change things up.

Resting heart rate data 24/7

A guide to Garmin and heart rate monitoring

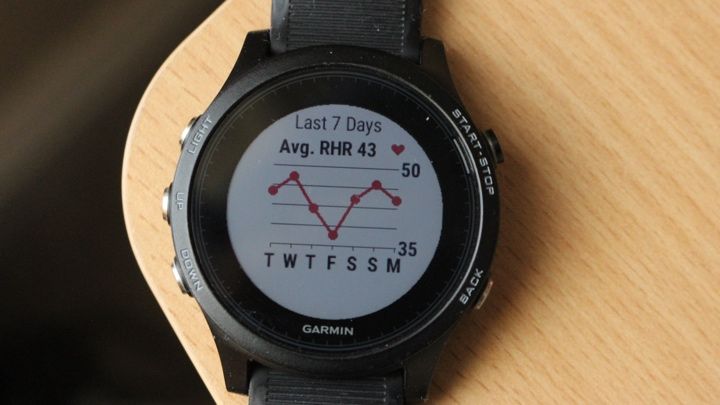

As well as using real-time heart rate data to keep a closer check on your workout intensity, many Garmins will now also let you monitor heart rate activity throughout the day and night. You should look out for a screen that looks like the one above to check in on this data. What you'll see is a graph displaying resting heart rate readings picking out when it was at its highest and at its lowest. You should be able to view this over four hours and over seven days (image below).

A guide to Garmin and heart rate monitoring

So why is resting heart rate data important? We go into the basics of resting HR here, but essentially recording and displaying this data offers a good insight into your current state of health or fitness, and lowering it could reduce the risk of heart disease.

A low resting heart rate (40-60) is usually associated with athletes or anyone seriously into their training, but for most 60-100 is expected for the average adult. For many sports watches, that RHR data can be used in tandem with maximum heart rate to dictate heart rate based training zones.

VO2 Max estimates

A guide to Garmin and heart rate monitoring

This piece of heart rate based piece of data is definitely one for fitness fans. As explained in our VO2 Max guide, it relates to the rate the heart and lungs can transport oxygen to muscles to measure your aerobic fitness level. The idea is that as you get fitter, your VO2 Max score should get higher.

Read this: Best fitness trackers to buy

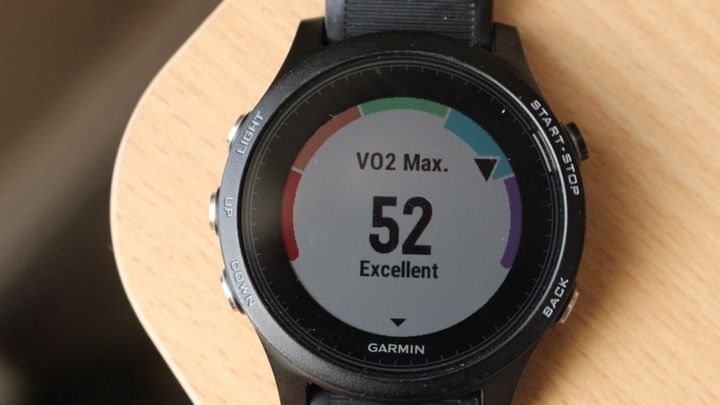

In the case of Garmin's wearables like the Forerunner 935, your VO2 Max score is represented on a colour coded gauge and is designed for runners and cyclists. You will need to have run outdoors with GPS tracking or cycle with a power meter for several minutes to produce the estimate.

The breakdown of the colours is as follows:

Red – Poor

Orange – Fair

Green – Good

Blue – Excellent

Purple – Superior

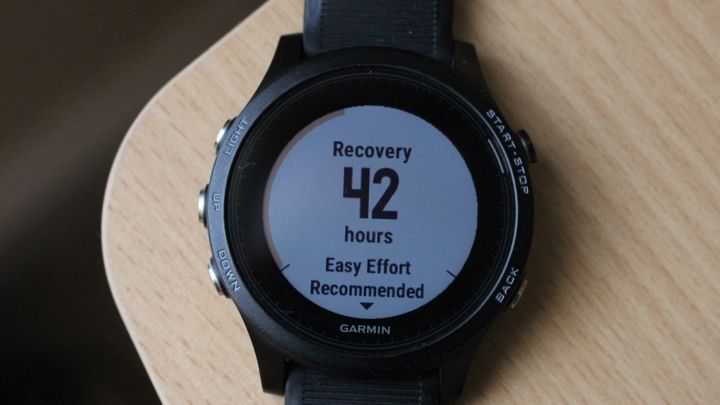

Recovery time

A guide to Garmin and heart rate monitoring

Garmin's top end wearables can also provide an insight into whether you need to take a day off before you start training again, using heart rate data from your wrist or a paired heart rate monitor chest strap. This insight relies on your VO2 Max scores we described above, so it may take a few tracked workouts before you start seeing accurate, reliable data.

There's two ways to view your recovery time. Firstly, it will be displayed after you've logged and saved a tracked run. Or post session, you can hunt out the performance widget on your watch, which will display a recommended recovery time and intensity level for that next workout.

Recovery heart rate

Another one reserved for Garmin's more capable sports watches, recovery heart rate is based on a reading of your heart rate during exercise and two minutes after the exercise has stopped. The difference between those two readings gives you your recovery heart rate. The optimal way to get this reading is to stop moving completely after that workout to improve the reliability of the information.


Why is recovery heart rate important? According to Garmin, studies have shown that recovery heart rate data can be linked to cardiac health. If you score a higher number, that's a good indication that you have a healthy heart.

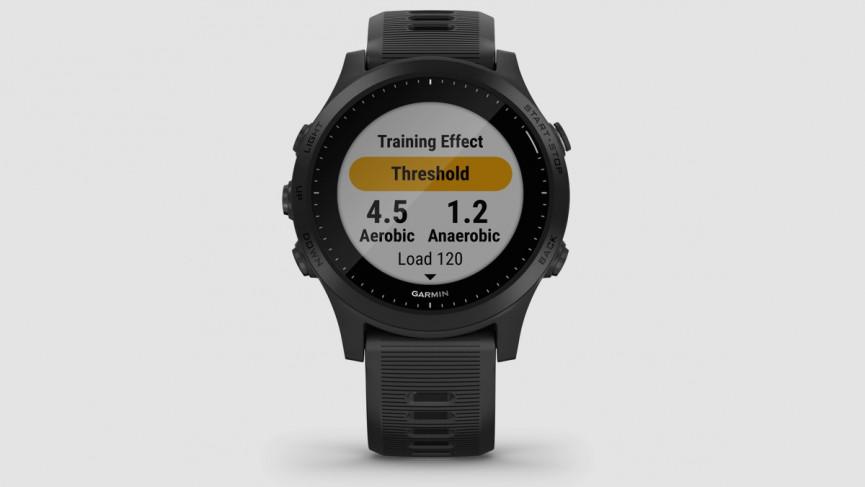

Training Effect

If you're wondering whether doing two big runs two days in a row is a good thing (it's probably not a good thing), Garmin's Training Effect feature is all about measuring the impact of aerobic and anaerobic training on your body. Some of Garmin's wearables measure both forms of training, while others will just offer insights into one. It uses heart rate data along with the duration and intensity of your activity to provide the training effect data.

You'll then be presented with a colour code, training effect number and an aerobic and anaerobic benefit insight. These insights tell you whether that workout has been good for maintaining your fitness levels. So it could say the session highly improved your fitness, or that you didn't give yourself enough recovery time before working out again.

Getting stressed out

A guide to Garmin and heart rate monitoring

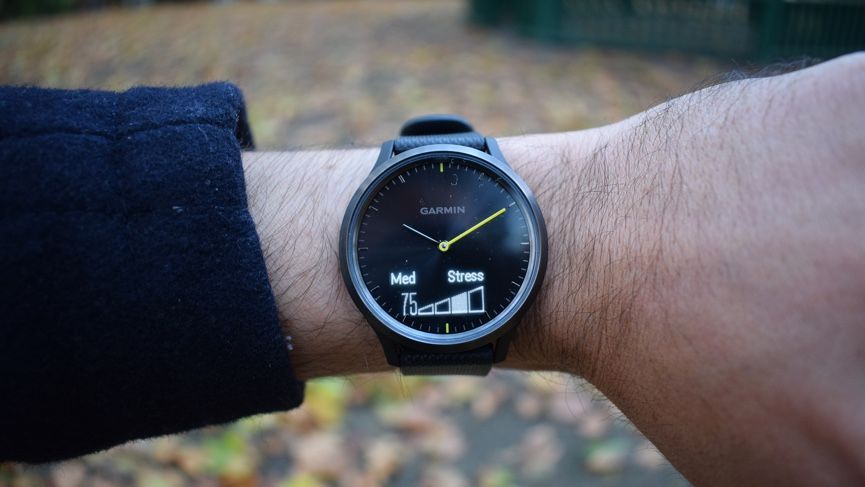

This a relatively new feature for Garmin's stable of wearables, which kicked off with the Vivosmart 3 before rolling out to watches like the Fenix 5 series and top end Forerunner watches. Now your Garmin can tap into your heart to get a better indication of your stress levels throughout the day. It uses heart rate variability to provide this information. HRV relates to the measurement of the time interval between heartbeats. Unlike measuring heart rate, which is about the average number of heart beats per minute, HRV focuses on the small fluctuations of the heart. A number of things can impact on these readings including age, time of day and health.

For those Garmins that do support stress monitoring, you should look for the screen above, which shows an indication of your stress level in real time with a numbered score, which ranges from 1-100. 1 means low stress and 100 means, well, you should probably do something to relax. You'll also be able to see your stress scores across a four hour period to help identify whether there was a particular event that may have caused your stress levels to spike.

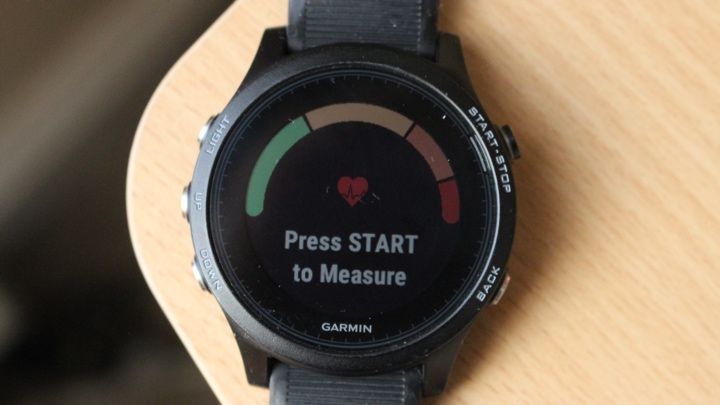

HRV stress test

A guide to Garmin and heart rate monitoring

There is another way that Garmin taps into heart rate variability to offer insights into your stress, training, nutrition and everyday life stress. Unlike the stress tracking feature mentioned above, this feature requires pairing your wearable with a compatible heart rate monitor chest strap.

Read this: Stress-beating tech to keep you sane

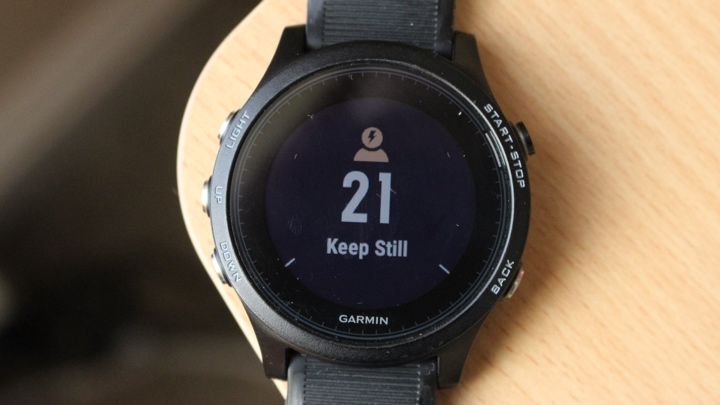

Once you get hold of one of those, you'll need to spare three minutes to measure HRV and be standing still to get a reliable reading. Then you can make a better call over whether you should be planning an intense HIIT workout, or maybe just relax. If you're struggling to find the HRV Stress test, it can be found in the same place where you can start tracking an activity on your Garmin wearable.

Review heart rate data on Garmin Connect

A guide to Garmin and heart rate monitoring

Garmin has made it pretty easy to review heart rate data on the wrist. It also does a very good job crunching the numbers and doing the analysis, saving you the headache of working out what it all means.

Sometimes though, it's nice to sit down, grab your phone or laptop and soak up the data on a bigger screen. Fortunately you can do that from the Garmin Connect app and we're going to show you where you need to go to find that data.

A guide to Garmin and heart rate monitoring

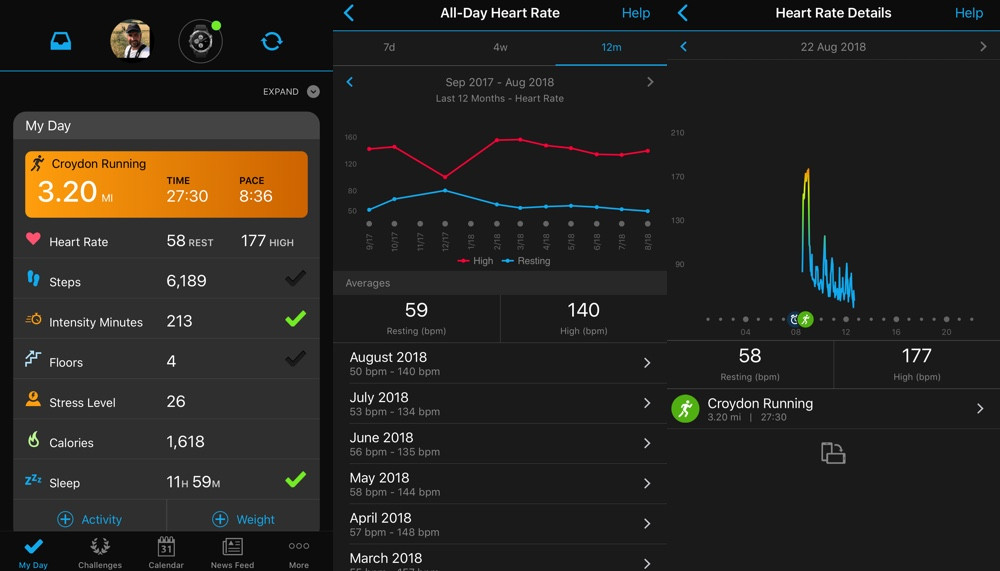

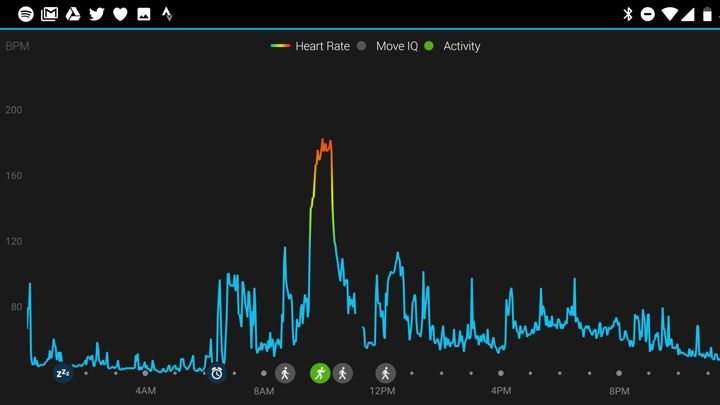

The good news is that Garmin's revamped Connect app now puts daily heart rate data and stress data front and centre. Head to the My Day tab and you should see resting and high rate up top. Tap on either the heart rate or stress tabs and you can drill in to that data further. What you'll see is a graph of your day, logging key events during the day (image below) and plotting heart rate data throughout the day. This way you can start to identify whether certain events have created a spike in your heart rate.

A guide to Garmin and heart rate monitoring

The calendar tab will let you jump from different days to see daily data, with a red bar indicating a full day's worth of heart rate data has been recorded.

Look for the dropdown menu in the Connect app (top left corner), where you'll find a section dedicated to Health Stats. This is where you can view All-Day Heart Rate over seven days, a month and a year, giving you resting and high HR averages. You can also find performance stats including VO2 Max, Training Effect and HRV Stress data.

Another important area to pay attention to is finding the place where you can configure your heart rate zones for heart rate based training. Tap on the icon displaying your Garmin wearable and head to User Settings to adjust zones.

And that is our comprehensive overview of getting to grips with heart rate monitoring on a Garmin. Got any questions about anything above? Let us know in the comments section below.
