A complete guide to the Apple Watch heart rate monitor

We answer how it works, how accurate it is and what's new with the Series 4

Over time, the Apple Watch has grown into quite the everyday heart rate monitor, but things have ramped up considerably with the new Series 4 and watchOS 5.

After dipping into some basic heart health through the previous smartwatch - giving users a high heart rate notification and resting heart rate stats - the Apple Watch Series 4 will now feature medical-grade accuracy through ECG monitoring.

No longer just a way for you to get a look at the basics, such as your workout stats, calorie burn, active minutes, the all-new heart rate monitor will work to provide atrial fibrillation detection, low heart rate detection and provide details on heart rate rhythm.

Essential reading: Apple Watch Series 4 unveiled

But how does it all work, what data is presented on the wrist and on the iPhone, and just how accurate is the tracking itself? Well, below, we've provided answers on all matters of the heart.

Hot smartwatch deals

Apple Watch Series 1
Apple Watch Series 1
Amazon
$220
Michael Kors Access Sofie - save $70
Michael Kors Access Sofie - save $70
Amazon
$279
Fitbit Versa
Fitbit Versa
Amazon
$199
Samsung Galaxy Watch
Samsung Galaxy Watch
Amazon
$329.99

Wareable may get a commission


How the Apple Watch heart rate monitor works

Almost every smartwatch harbouring a heart rate monitor makes use of the same technology, and the Apple Watch is no different.

Read this: Activity and Workout explained

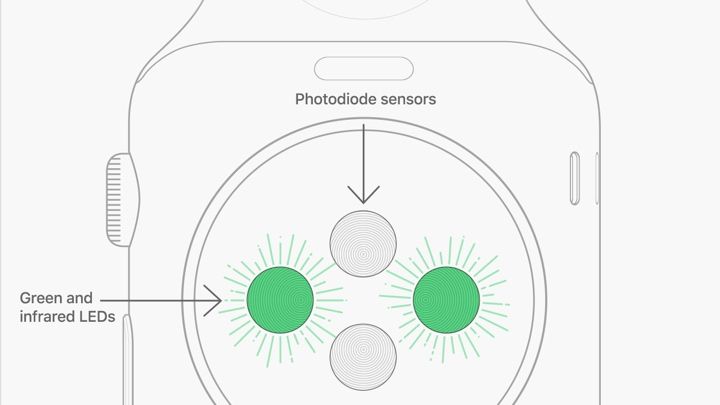

Photoplethysmography, as it's known, essentially works on this premise: blood is red because it reflects red light and absorbs green light. Therefore, by using green LEDs and pairing them with photodiodes, a device is able to detect the amount of blood flowing through the wrist.

When your heart beats, this flow, and by proxy the green light being absorbed, is greater. Between beats, meanwhile, it's less. In order to attain the most accurate BPM data, these LEDs flash hundreds of times per second.

This technology is also used by the Apple Watch's Breathe app, which focuses the user on relaxing, as well as providing insight into the walking average BPM and heart rate variability.

Essential reading: Heart rate variability explained

However, it's not just during bouts of exercise that the heart rate monitor is in action. It can also utilise infrared light to measure your heart rate in the background and give you a heads-up if your heart is spiking to dangerous levels.

ECG and the Series 4

But heart rate has been given an overhaul on the Apple Watch Series 4. The latest version of Apple's smartwatch has the ability to take an electrocardiogram (ECG), which offers a much more detailed picture of your heart rate.

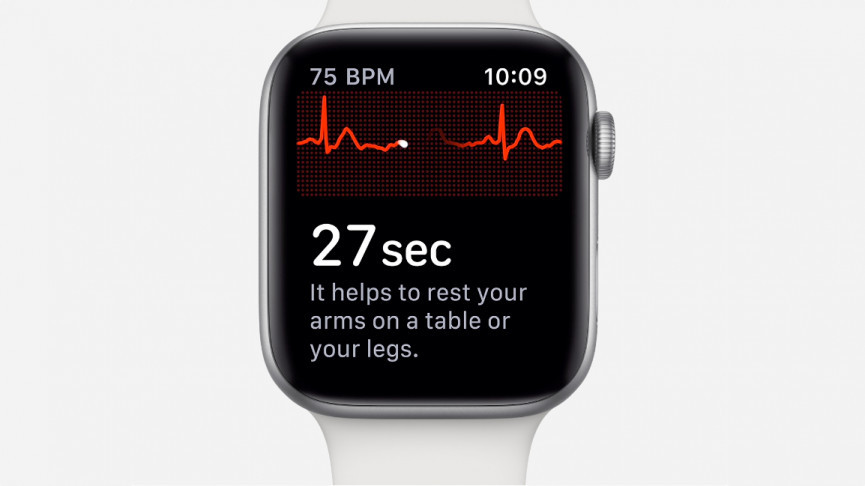

It does this thanks to contacts built into the new ceramic backplate and the re-engineered Digital Crown. Open the ECG app and put your finger on the crown for 30 seconds and you will get a detailed picture of your heart beat. It will study it and determine whether the beat is normal or irregular (a sign of atrial fibrillation). The Apple Health app is FDA certified, and the feature is rolling out in the US later this year

Understanding Apple Watch HR data

Apple Watch heart rate monitor guide: Tapping into your ticker from the wrist

Real-time heart rate

When wearing the Apple Watch, you're given continuous heart rate readings during exercise and can also view your average heart rate for the entire workout once you've finished.

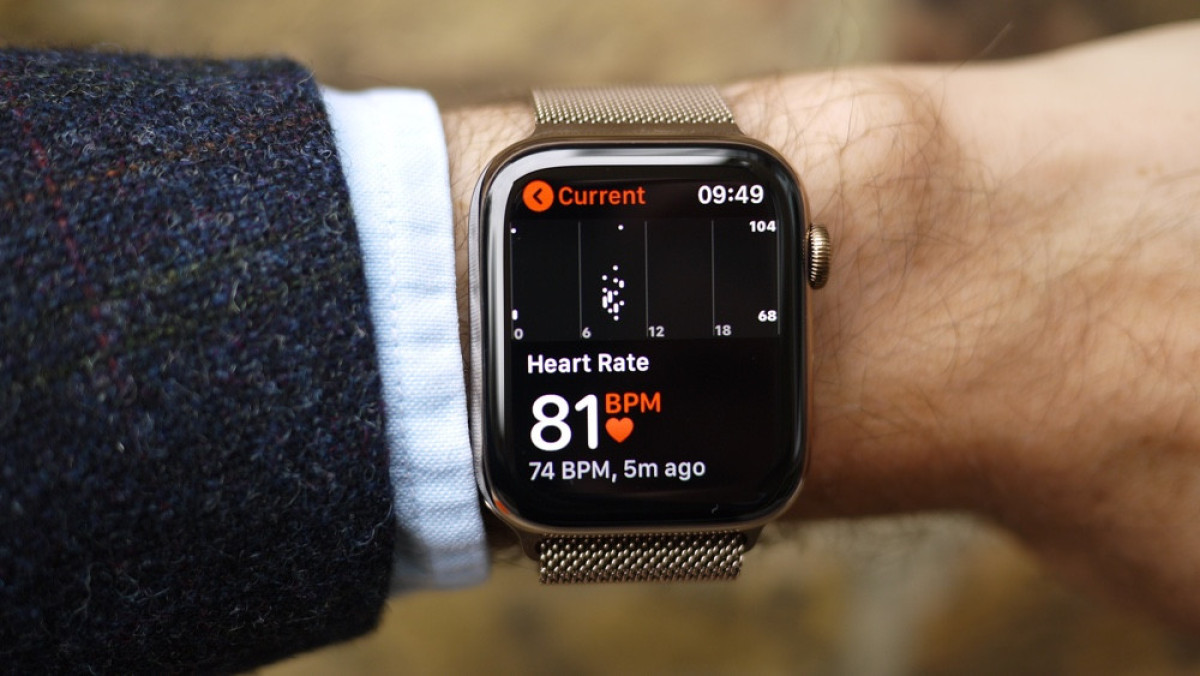

But if you're simply at your desk and want to see how your heart is getting on, head to the Watch's Heart Rate app, which also provides insight into your resting, walking, and overall rate throughout the day.

You can even go straight to the app from your watch face by adding a complication, as we have below. Not sure how to do that? Head to our Apple Watch complications guide.

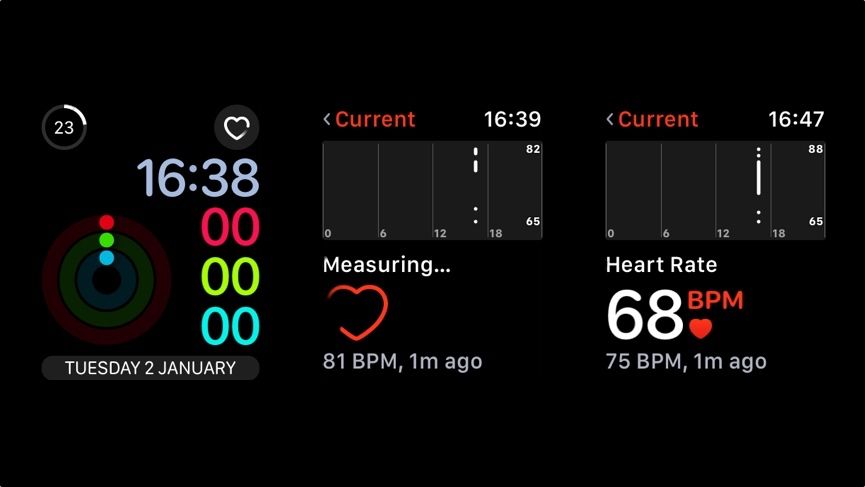

These screens above show exactly what you'll get on the Watch. The left screen shows off the heart rate widget on a watch face, while the middle and right screen shows how a heart rate reading is taken.

The small graph above the measurement, meanwhile, gives you an insight into how your heart rate has varied throughout the day.

Apple Watch heart rate monitor guide: Tapping into your ticker from the wrist

Resting heart rate

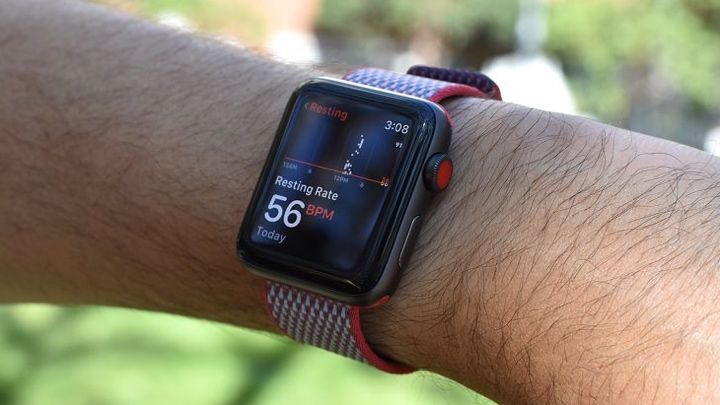

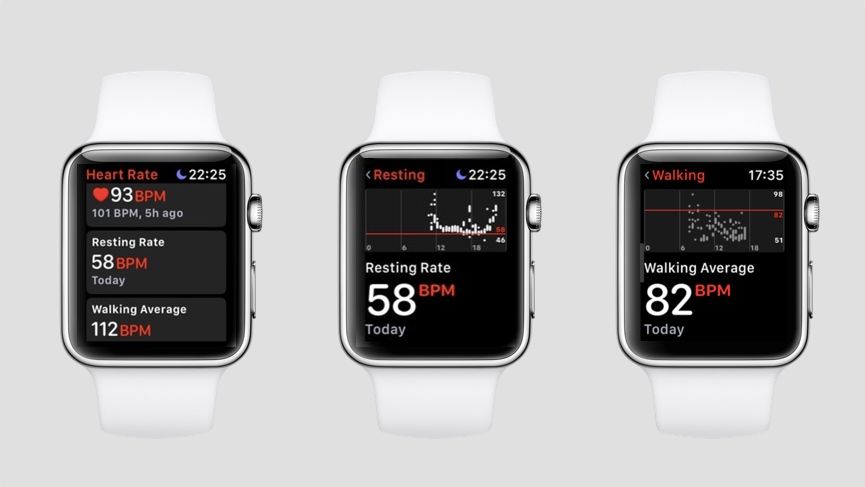

But that's not all. Swiping up will give you access to your daily resting heart rate and your walking average rate. Resting heart rate is a key measurement of your health, and keeping an eye on it can prove you're getting healthier, and spikes can indicate tiredness, stress or a need to take things easy.

The Apple Watch calculates both of these metrics by correlating readings taken in the background with accelerometer data. As is the case with the standard heart rate screen above, a mini-graph will show you how this has changed throughout the day.

Your daily resting heart rate, interestingly, is something that only shows up after a couple of hours wearing the device. The figure will alter as more data is pulled in throughout the day, with readings taken when the device has determined that the wearer has been still for few moments. It's even smart enough to not take readings when, for example, your heart rate is still slightly elevated from a morning sprint for the train.

Heart rate alerts

As for walking heart rate, things are a bit more self-explanatory. Whenever the watch detects that your heart rate is elevated from, say, walking to get lunch, this will be logged in order to give you an insight to how your heart is working.

But the Apple Watch is also watching your heart rate for signs that aren't quite so healthy. Users will receive notifications when the Apple Watch detects your heart rate rising above, for example, 120 beats per minute when you appear to be inactive, which can be a sign of atrial fibrillation – a huge contributor to strokes, which is a common killer.

And the company has gone further, and now offers warnings if your heart rate appears to be too low – another sign that something might not be right.

The easiest way to enable and adjust this is by heading to the Watch app on your iPhone, scrolling down to Heart Rate in the My Watch section and tinkering with the settings which suit your ticker.

Heart rate data on the iPhone

Complete guide to the Apple Watch's heart rate monitor

As you might expect, the data pulled in and presented on the Apple Watch is also expanded on the iPhone.

If you're looking to view your heart data from completed workouts, you'll want to head to the Activity app - this gives you a more detailed graph of how your heart rate fluctuated throughout the activity, and also how your heart recovered in the three minutes following the end of your exercise.

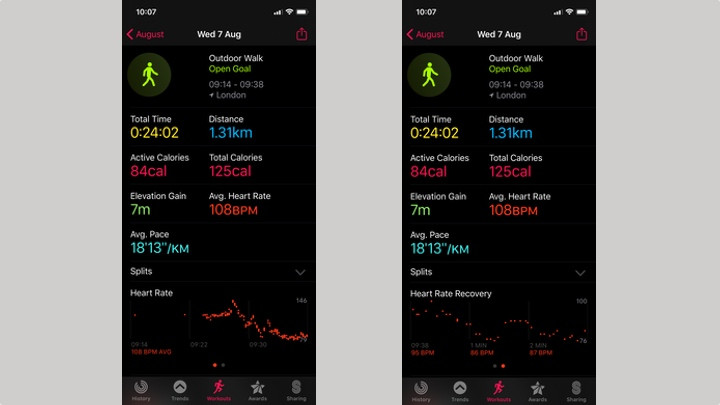

Let's take the bit of activity below as an example. The red markers on the graph show heart rate developing as the exercise progresses, with a gap when paused, before resuming and continuing to track heart rate. If you swipe, you get access to your heart rate recovery (right image). The faster your heart returns to a steady pace, the healthier your cardiovascular system is likely to be.

Apple Watch heart rate monitor guide: Tapping into your ticker from the wrist

But though these are useful ways to provide you with a more detailed look at your heart rate, the downside here is that there's no real interpretation of that data. While you have an indication of when your heart rate was high, for example, there's no breakdown of how much time you spent in each heart rate zone or any data regarding VO2 Max, which is the rate in which oxygen is transferred into the blood and widely regarded as the definitive measure of fitness.

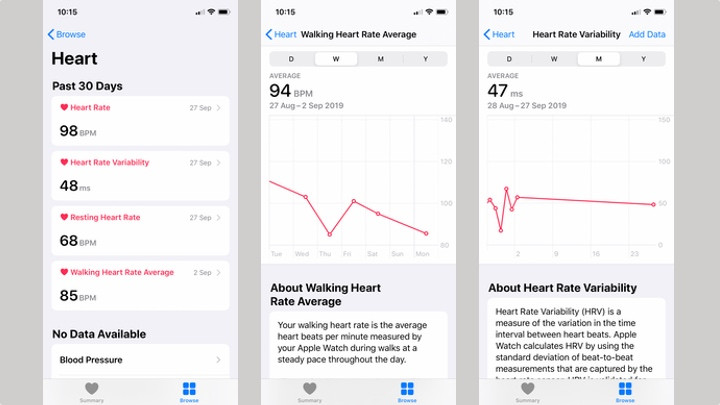

Moving on from heart data tracked through exercise, you're also able to grab a deeper look at your resting rate, walking average and overall heart rate on the iPhone. Again, you can't view the history of these metrics on the Watch, so heading over to Apple Health's Heart section will give you a comprehensive look at each of these sections.

As shown below, you can select to view how your heart has performed on an hourly, daily, weekly, monthly or yearly time frame, while tapping the 'i' on each tab throws you into a more advanced graph, helping you pinpoint particular readings.

Apple Watch heart rate monitor guide: Tapping into your ticker from the wrist

Third-party apps

You're able to receive a fairly detailed look at your heart through Apple's own tracking, but there are dedicated third-party apps aiming to fill some of the gaps discussed above. Both Cardiagram and HeartWatch will give you a live look at heart rate zones, for example, while also providing a more detailed insight into your heart rate history on the Watch itself.

Tips: How to use wearables to lower your resting heart rate

And this action isn't limited to heart health, either. Fitness platforms that support heart rate tracking, such as Strava, are able to tap into the tech in order to interpret your data more fully – perfect for those who don't want to use Apple's proprietary tracking apps.

Apple Watch heart rate monitor: Let's talk about accuracy

Apple Watch heart rate monitor guide:

It all sounds good in practice, but it comes down to whether this can truly deliver an accurate monitoring experience from the wrist.

And for the most part, the Apple Watch does this as well as any wrist wearable on the market. After all, while the same technology is being used to gather the data, it's how this is then interpreted which leads to accuracy or inaccuracy.

Through our testing of the Watch against a chest strap over the last few years, we've found it to be one of the more consistent performers. However, that doesn't mean it's free from the same limitations as the rest of smartwatches and fitness trackers using optical sensor technology. That is, when drifting quickly between low and high beats per minute during intense intervals, it can often struggle to keep up.

Read next: Heart rate monitors – chest straps vs. wrist

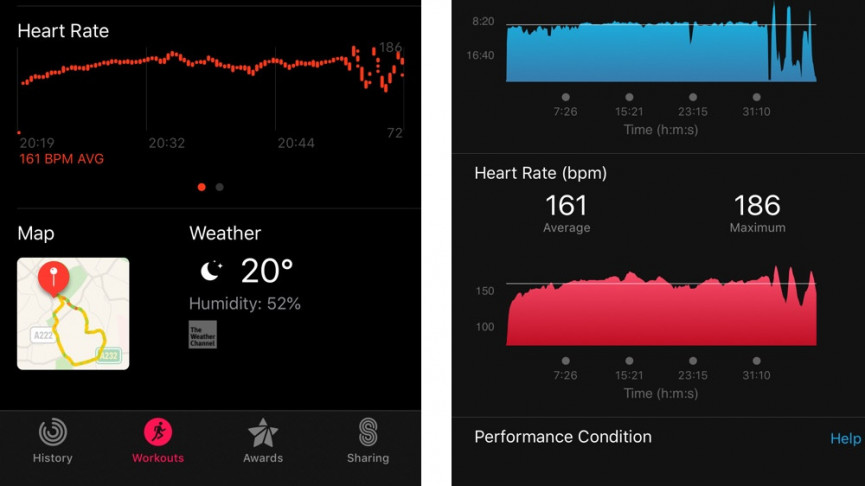

In our experience, such as in the example below, we tend to see average heart reading slightly higher than the number given by chest straps, but this is nothing too drastic if you're just looking to keep a basic tab on your beats.

Apple Watch heart rate monitor guide: Tapping into your ticker from the wrist

(Apple Watch Series 3 – left – compared to the Polar H10 chest strap – middle and right)

It's also worth pointing out that, in order to receive the most accurate results, you need to ensure that the fit on your wrist is right. That means you can't have it too tight, or too loose. Your skin needs to be in contact with the sensors at all times, but with room left for your skin to breathe.
