How it works: ​We explain how your fitness tracker measures your daily steps

From the sensors to the algorithms, this is how your fitness tracker works its magic
How it works: Fitness trackers

It sits quietly on your wrist: counting up your steps, monitoring your sleep, and calculating the difference between a light jog and a mad sprint. But how exactly does your fitness tracker come up with all those statistics that appear on your smartphone app?

We got down and dirty with the tech and spoke to some of the companies trying to make sense of the data.

Hot off the press: Fitbit Charge 2 | Fitbit Flex 2

Read on to peer behind the curtain—and find out why fitness tracking isn't an exact science yet.

Starting off with the sensors

Simply speaking, fitness trackers measure motion: most of today's wearables come with a 3-axis accelerometer to track movement in every direction, and some come with a gyroscope too to measure orientation and rotation.

The data collected is then converted into steps and activity and from their into calories and sleep quality, though there is some guesswork involved along the way.

Essential reading: Samsung Gear Fit2 review

Then there's the altimeter that can measure your altitude, handy for working out the height of the mountains you've climbed or the number of flights of stairs you've managed to get up and down during the day. All of this information is collected and crunched to create an overall reading, and the more sensors your tracker has, the more accurate its data.

These sensors measure the acceleration, frequency, duration, intensity and patterns of your movement—taken together that's a good bunch of data and it can help a tracker work out if you're walking down the road or just waving at someone you know. Have a dive into the specs list of a particular tracker to see what sensors are included to collect data about you.

Getting in-depth

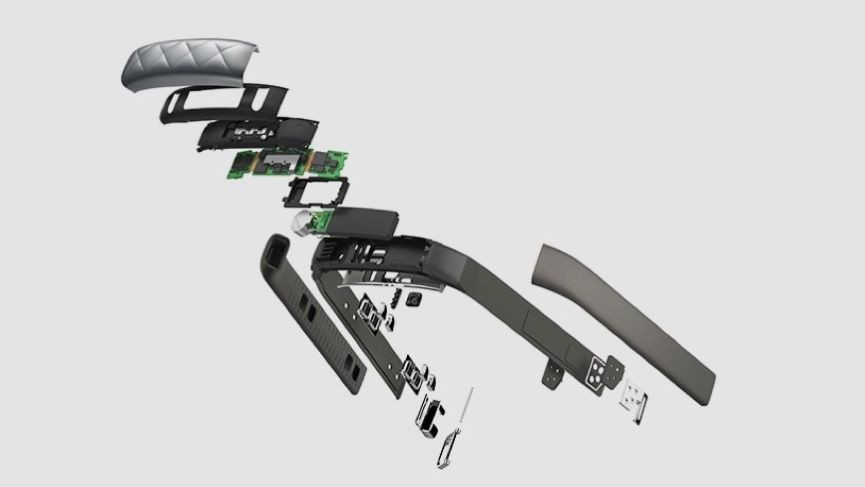

The Jawbone UP3 is one of the most sensor-packed trackers out there, squeezing in temperature sensors and a bioimpedance sensor alongside the familiar accelerometer we've already mentioned. Bioimpedance sensors check the resistance of your skin to a tiny electric current, and the four electrodes on the inside of the UP3 fitness tracker are clearly visible.

Other wearables (such as the Xiaomi Mi Band Pulse) use optical sensors to shine a light on your skin and measure your pulse through it: the light illuminates your capillaries, then a sensor measures the rate at which your blood is being pumped (and thus your heart rate). These optical sensors are less effective than bioimpedance as a gauge of your overall health but can be more useful if you want to check your heart rate as you exercise or work out.

It's a similar story with sleep tracking: using a process called actigraphy, your tracker translates wrist movements into sleep patterns as best it can, and as with steps there's some guesswork and estimating involved. It's a useful guide, but it's not as accurate as polysomnography—this is what the experts use to measure sleep in a lab, and it monitors brain activity rather than how much you're tossing and turning.

Add in the algorithms

As you might already know, it's difficult to get two fitness trackers to agree on how much activity you've got through in a day or what your heart rate actually is. That's because the sensors inside each device aren't perfect at measuring what you're doing—they all use slightly different algorithms to translate the raw data into actual statistics.

For example, your tracker might dismiss a small movement of the wrist and not include it as a step. But how small is too small? Different devices will have different thresholds and thus bring back different readings. Anything from a bumpy car ride to a plush carpet can throw off the accuracy of your fitness tracker.

When it comes to calories, an app needs more than just a step count to make the calculation: that's why you'll often be asked for your age, gender, height and weight too. The algorithms used by each manufacturer aren't made publicly available, as each one likes to keep a lid on the 'secret sauce' they use to get the best and most accurate results, but the more sensors and data points used the more accurate the results are likely to be.

To really tell how many calories you're burning, for example, a tracker needs to add data about your heart rate and how much you're perspiring into the algorithm alongside how many steps you're taking.

One of the most well-known tracking platforms out there is MotionX, which you can find in Nike's running apps, the latest Swiss smartwatches and many other devices. Philippe Kahn is co-founder and CEO of MotionX developer FullPower, and he explained to us how the 'signal processing' procedure inside a fitness tracker cleans up the raw data that's collected.

"Think about being at a concert. You just made a poor recording of a concert with a tape recorder of a great performance from a seat in the audience. Together with music, the recorder picks up all sorts of noises around you: your foot tapping, chatter, interactions... if you wanted to turn this poor recording into a quality recording of the music, you'd have to eliminate as much of these unwanted sounds as possible."

And the quality of this cleaning up process varies from tracker to tracker, Kahn says. The applied methodologies range from the simple to the sophisticated, but MotionX goes all in: Fullpower uses more than 100 specialist engineers to tweak the accuracy and effectiveness of its software, and the company has invested more than $50 million in the development of next-generation algorithms — this is big business.

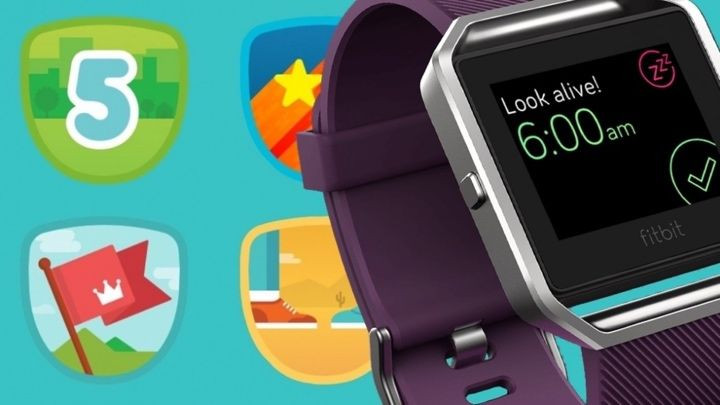

Fitbit Blaze
Wareable may get a commission
Amazon

There's an app for that

The apps are the final link in the chain, presenting your data in a user-friendly format once it's been passed through various algorithms and refined accordingly. You'll notice most fitness tracking apps come with the ability to add data and exercise manually as well — we don't yet have a tracking device or a set of sensors you can fully rely on.

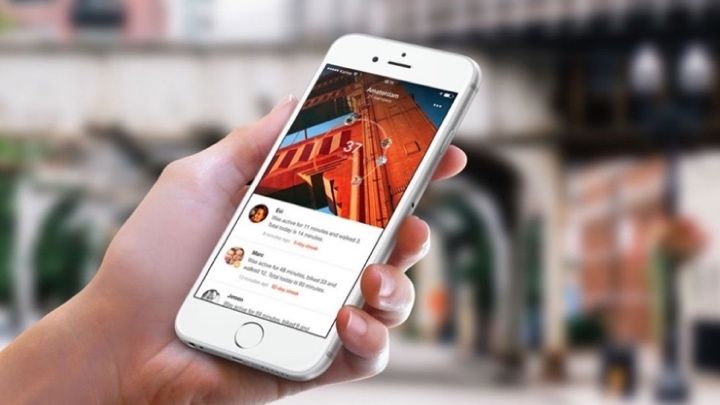

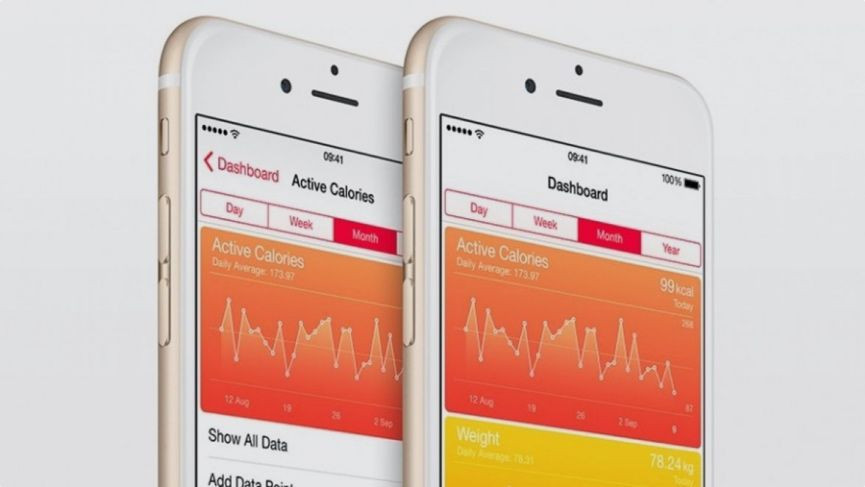

Thanks to Apple Health, Google Fit and the array of sensors inside our phones, developing apps is easier than ever, especially with the arrival of Apple's M7 and M8 chips: the data is essentially ready to go and it's up to developers to do something distinctive with it. Human is one of the third-party apps tapping into this information, and Human CEO Paul Veugen explained to us how data gets piped from device to app:

"Most of the stuff that you see in the App Store right now are just pedometers, and counting steps on an iPhone is super-easy," he says, thanks to the M7 and M8 chips in the newest handsets. "It's all built-in and Apple just offers you the readings — you can get them with five lines of code. But building a meaningful timeline out of those measurements is a whole different ball game."

"Every few seconds you get measurements... overall walking and running are pretty accurate, but anything else is very messy. If you want to build a timeline on top of that you really have to do some post-processing on top [of the data]. We built our own tracking on top of the accelerometer in the iPhone."

So two apps won't necessarily report the same statistics, even if they're using the same raw data. The next time you're in the market for a wearable tracking device, pay close attention to the integrated software and compatible apps as well as the sensors and algorithms packed into the device itself. They all play a part in the number of steps that flash up on your smartphone screen at the end of the day.
